HC Series

HC10DT

10 kg Payload Collaborative Robot with Direct Teach Buttons

Roboty Coboty - Seria HC

Overview

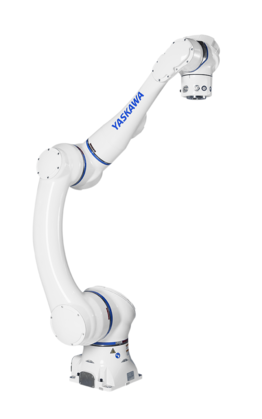

The MOTOMAN HC10DT is a human-collaborative robot with a payload of 10 kg. It provides an absolute reach (S/L-Axis center of rotation to R/T-Axis center of rotation) of 1,379 mm and an effective reach (S/L-Axis center of rotation to Point P) of 1,200 mm.

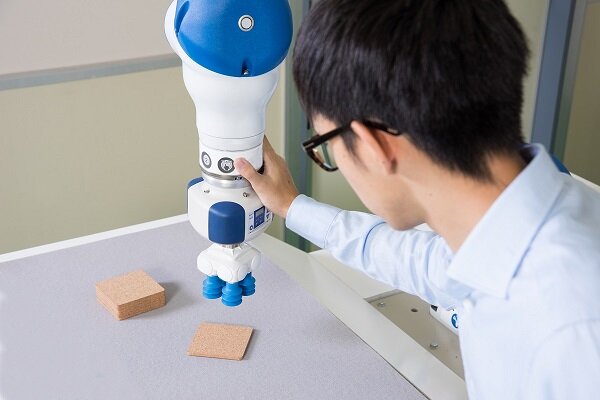

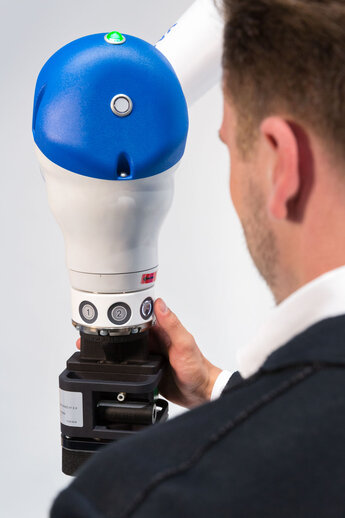

Direct Teach Buttons close to the robot flange are perfect for easy hand guiding programming, allowing to teach robot paths without involving other input devices. Installation, Setup and Programming is very easy and intuitive.

Operator’s safety is assured by a Power and Force Limit technology that stops the robot in case of contact with an operator. The MOTOMAN HC10 robot can operate without additional protective measures like a safety fence, depending on the risk assessment.

The HC10DT is member of our Smart Series Plug & Play Initiative.

Technical Details

  • Number of Axes
  • 6
  • Payload
  • 10 kg
  • Max. Working Range
  • 1379 mm
  • Repeatability
  • 0.1 mm
  • Weight
  • 48 kg
  • Power Supply
  • 1 kVA
  • Maximum Speed S Axis
  • 130 °/s
  • Maximum Speed L Axis
  • 130 °/s
  • Maximum Speed U Axis
  • 180 °/s
  • Maximum Speed R Axis
  • 180 °/s
  • Maximum Speed B Axis
  • 250 °/s
  • Maximum Speed T Axis
  • 252 °/s
  • Mounting Options
  • Floor, Wall, Ceiling
  • Further Specifications
  • x No
