MotoEdit

Overview

MotoEdit is an application for remote support, maintenance and live troubleshooting. The tool offers control and detailed access to robot files, variables, and I/O. MotoEdit can be connected on the fly to any system as long as there is a network connection (i.e. VPN) configured.

MotoEdit enables you to monitor job flow in any task, edit robot jobs, view as well as edit variables, I/O and current robot position data. Further features are alarm handling, backup of controller files, and restoration of job files. The tool offers even access to files that are located on a robot controller connected with a USB-thumb drive.
It is also possible to send messages from MotoEdit to the teach pendant of the robot controller, e.g. to notify the robot operator and pendant user that a remote session has started.

Key benefits

• Live monitoring of robot execution, variable and I/O data
• Remote supervision, support and live troubleshooting

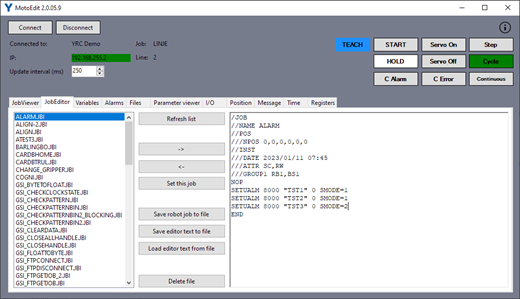

• View and edit robot jobs on the spot
• View and handle robot errors and alarms including alarm history
• Backup of controller files and restore job files
• Robot register data and controller database
• Unlimited number of robot controllers can be handled

Compatible with

• YRC1000 and YRC1000 micro, DX200, FS100, DX100, NX100 (limited functionality)

MotoEdit features

• Edit, backup and restore job files and external files.
• Monitor the ongoing job flow.
• View and edit variable data.
• Internal database with record of robot controllers.
• View current and historical alarms.
• View parameter settings.
• I/O monitoring.
• Position monitoring.
• Robot control: start and stop.
