GP Series

GP8

6-axis, compact and high speed handling robots

Overview

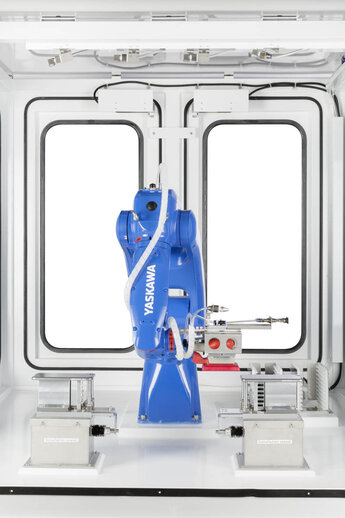

The MOTOMAN GP8 is a compact and high speed handling robot which provides a payload of 8 kg.

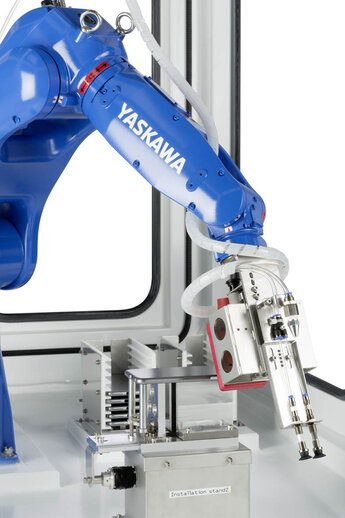

Easy set-up and maintenance and a wrist structure with great environment resistance improve efficiency in installation, operation and maintenance of equipment.

Anti-Corrosive painting of the  GP8 ACC allows the robot to be used in environments with corrosive atmospheres such as acids, alkali and vapors.

Technical Details

  • Number of Axes
  • 6
  • Payload
  • 8 kg
  • Max. Working Range
  • 727 mm
  • Repeatability
  • 0.02 mm
  • Weight
  • 32 kg
  • Power Supply
  • 1 kVA
  • S Axis
  • 455 °/sec
  • L Axis
  • 385 °/sec
  • U Axis
  • 520 °/sec
  • R Axis
  • 550 °/sec
  • B Axis
  • 550 °/sec
  • T Axis
  • 1,000 °/sec
  • Mounting Options
  • Ceiling, Wall, Floor
