GP FGG Series

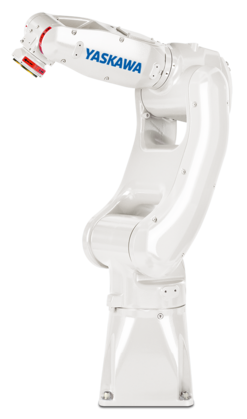

GP8 FGG

Agile 6-Axis Robot for Food Handling Applications

Overview

The MOTOMAN GP8 FGG is a compact and high speed handling robot which provides a payload of 8 kg.

Food grade grease allows this robot to be used in food related applications in secondary and tertiary packaging.

Its drip proof design assures smooth disposal of a liquid on the robot surface.

Technical Details

  • Number of Axes
  • 6
  • Payload
  • 8 kg
  • Max. Working Range
  • 727 mm
  • Repeatability
  • 0.01 mm
  • Weight
  • 35 kg
  • Power Supply
  • 1 kVA
  • Maximum Speed S Axis
  • 455 °/s
  • Maximum Speed L Axis
  • 385 °/s
  • Maximum Speed U Axis
  • 520 °/s
  • Maximum Speed R Axis
  • 550 °/s
  • Maximum Speed B Axis
  • 550 °/s
  • Mounting Options
  • x No
  • Further Specifications
  • x No
