GP Series

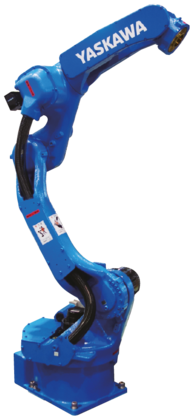

GP12

6-axis, compact and high speed handling robots

Overview

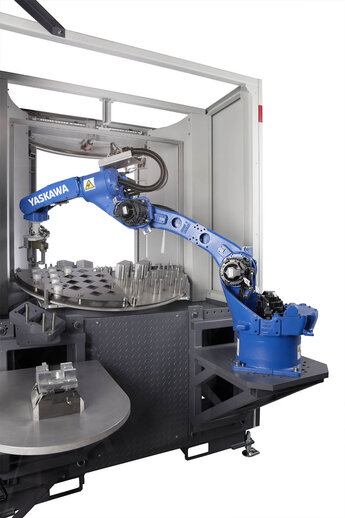

The MOTOMAN GP12 is a compact and flexible handling robot which provides a payload of 12 kg.

Easy set-up and maintenance and a wrist structure with great environment resistance improve efficiency in installation, operation and maintenance of equipment.

This robot is also available with protection class IP65/67 to operate in harsh environments.

Technical Details

  • Number of Axes
  • 6
  • Payload
  • 12 kg
  • Max. Working Range
  • 1,440 mm
  • Repeatability
  • 0.08 mm
  • Weight
  • 150 kg
  • Power Supply
  • 1.5 kVA
  • S Axis
  • 260 °/sec
  • L Axis
  • 230 °/sec
  • U Axis
  • 260 °/sec
  • R Axis
  • 470 °/sec
  • B Axis
  • 470 °/sec
  • T Axis
  • 700 °/sec
  • Mounting Options
  • Ceiling, Wall, Floor
Processing... Enter name, description, product or keywords Showing _START_ – _END_ / _TOTAL_ records filtered from _MAX_ records No records No records First Last Sort ascending Sort descending

Downloads

Name
Flyer Robot GP12
Handling & General Applications with the GP-series Data sheet | English
Data sheet English
Flyer Robot GP12
Handling & Allgemeine Applikationen mit der GP-Serie Data sheet | German
Data sheet German
GP12 2D CAD/CAE | CAD/CAE
GP12 3D CAD/CAE | CAD/CAE
