HC Series

HC10

10 kg Payload Collaborative Robot

Overview

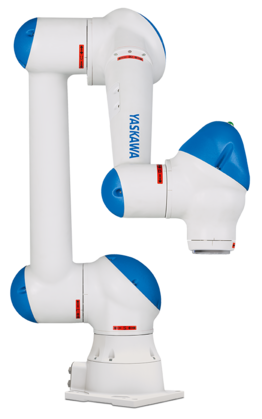

The MOTOMAN HC10 is a 6 axis human-collaborative robot with a payload of up to 10 kg. It provides an absolute reach (S/L-Axis center of rotation to R/T-Axis center of rotation) of 1,379 mm and an effective reach (S/L-Axis center of rotation to Point P) of 1,200 mm.

Operator’s safety is assured by a Power and Force Limit technology that stops the robot in case of contact with an operator.

The MOTOMAN HC10 robot can operate without additional protective measures like a safety fence, depending on the risk assessment.

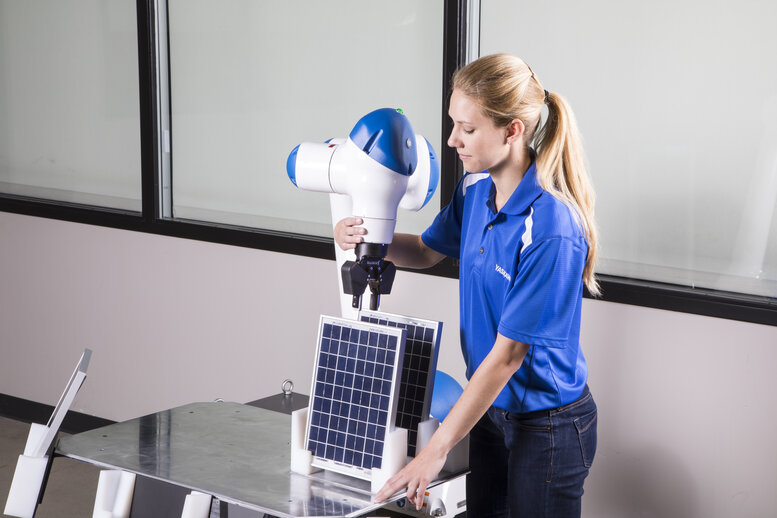

Installation, Setup and Programming is very easy and intuitive, by using hand guiding or Smart Pendant.



Technical Details

  • Number of Axes
  • 6
  • Payload
  • 10 kg
  • Max. Working Range
  • 1379 mm
  • Repeatability
  • 0.1 mm
  • Weight
  • 47 kg
  • Power Supply
  • 1 kVA
  • Maximum Speed S Axis
  • 130 °/s
  • Maximum Speed L Axis
  • 130 °/s
  • Maximum Speed U Axis
  • 180 °/s
  • Maximum Speed R Axis
  • 180 °/s
  • Maximum Speed B Axis
  • 250 °/s
  • Maximum Speed T Axis
  • 250 °/s
  • Mounting Options
  • Floor, Wall, Ceiling
  • Further Specifications
  • x No
