NEX-Series

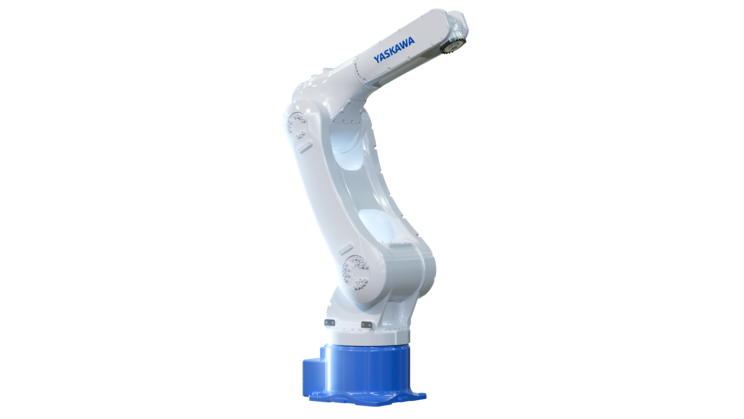

NEX20
Handling robot for adaptive, AI-based automation
Overview
With a payload of 20 kg and a reach of 1,550 mm, the NEX20 manipulator is the right fit for a wide range of adaptive handling and assembly tasks. As part of the MOTOMAN NEXT platform, it is suitable for automation in which robots use sensors (e.g., cameras, force sensors) to detect, understand, evaluate, and autonomously respond to new situations and workpiece variants.
MOTOMAN NEXT integrates classic robot control with an NVIDIA-based control module (ACU), offering all the possibilities of the classic signal-based automation world (OT) and the data-based IT world on one single platform. Modern software engineering tools (by Yaskawa, NVIDIA, ROS 2 community), an open LINUX Docker environment, and services provided by Yaskawa give programmers complete freedom to efficiently and successfully deploy AI robotics applications in the field.
The NEX20 manipulator features newly designed high-inertia robot servo drives from Yaskawa’s Sigma-X generation, which combine high drive dynamics with outstanding absolute accuracy – for exact correspondence between the real and virtually planned worlds including automatic path planning or precise sensor guidance.
Integrated media and Ethernet cables (Cat6) in the robot arm supply intelligent plug-and-play actuators or cameras on the robot flange, for example, without the need of external media packages along the robot arm.
KEY FEATURES
- Universal load capacity and working range (up to 20 kg / 1550 mm)
- High motion performance and agile servo control (new high inertia servo drives)
- Outstanding positioning / absolute accuracy
- Low weight, slim design with small installation area
- Integrated Ethernet and media cables, options for cable routing
- IP67-protected housing
Technical Details
- Number of Axes
- 6
- Payload
- 20 kg
- Max. Working Range
- 1552 mm
- Repeatability
- 0.02 mm
- Weight
- 225 kg
- Power Supply
- 2 kVA
- Maximum Speed S Axis
- 240 °/s
- Maximum Speed L Axis
- 240 °/s
- Maximum Speed U Axis
- 300 °/s
- Maximum Speed R Axis
- 430 °/s
- Maximum Speed B Axis
- 430 °/s
- Maximum Speed T Axis
- 900 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
