GP Series

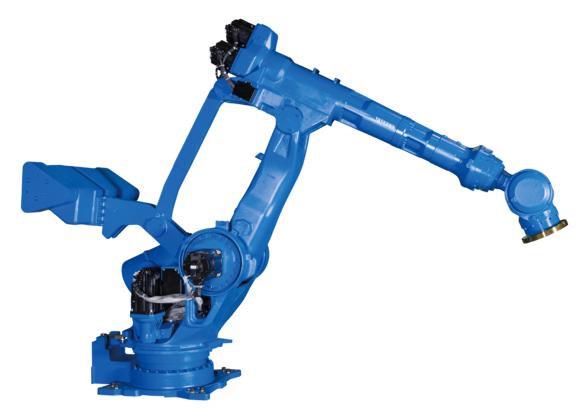

GP600
Heavy Payload 6-Axis Robot
Overview
The powerful MOTOMAN GP600 handling robot provides an impressive payload of 600 kg and a maximum reach of 2,942 mm. Due to its parallel link design, the outstanding repeatability is better than +/- 0.1 mm.
Designed with extremely fast axis speeds and parallel-link construction to expertly perform heavy-payload tasks, the six-axis GP600 is ideal for heavy part handling, machine and press tending, as well as “jigless” applications. Engineered for simple installation, easy operation and minimal maintenance, this robot features a wide work envelope, along with high moment and inertia ratings for the accommodation of large, heavy parts. A streamlined upper arm provides easy access to parts in tight spaces, and a reduced interference design allows the robot to be placed closer to workpieces and machines, optimizing floorspace. Equipped with heavy-duty bearings for smooth arm rotation, the GP600 is a smart choice to fulfill a variety of heavy-payload needs.
Technical Details
- Number of Axes
- 6
- Payload
- 600 kg
- Max. Working Range
- 2942 mm
- Repeatability
- 0.1 mm
- Weight
- 3035 kg
- Power Supply
- 7 kVA
- Maximum Speed S Axis
- 82 °/s
- Maximum Speed L Axis
- 82 °/s
- Maximum Speed U Axis
- 82 °/s
- Maximum Speed R Axis
- 80 °/s
- Maximum Speed B Axis
- 80 °/s
- Maximum Speed T Axis
- 162 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
