AR Series

AR3120

The six-axis MOTOMAN AR robots provide accurate performance especially for the high demands of arc welding applications

Overview

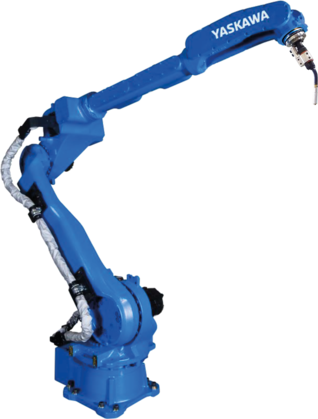

The six-axis robot MOTOMAN AR3120 provides the widest motion range of our AR-series and high path accuracy for optimum results of arc welding applications.

With a payload of up to 20 kg and a motion range of 3,124 mm, this robot supports welding of bulky workpieces.



Technical Details

  • Number of Axes
  • 6
  • Payload
  • 20 kg
  • Max. Working Range
  • 3,124 mm
  • Repeatability
  • 0.15 mm
  • Weight
  • 560 kg
  • Power Supply
  • 2 kVA
  • S Axis
  • 190 °/sec
  • L Axis
  • 190 °/sec
  • U Axis
  • 190 °/sec
  • R Axis
  • 400 °/sec
  • B Axis
  • 430 °/sec
  • T Axis
  • 630 °/sec
  • Mounting Options
  • Ceiling, Wall, Floor
