AR Series

AR2010

The six-axis MOTOMAN AR robots provide accurate performance especially for the high demands of arc welding applications

Overview

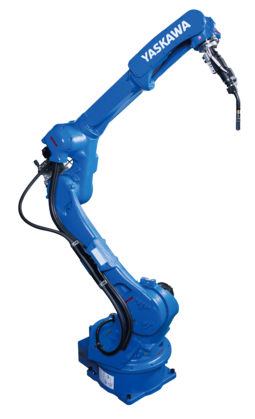

The 6-axis robot MOTOMAN AR2010 of our AR-series, thanks to its high path accuracy, is an optimal robot for arc welding applications.

With a payload of up to 12 kg and a wide working range of 2010 mm this robot supports welding of bulky workpieces.

Technical Details

  • Number of Axes
  • 6
  • Payload
  • 12 kg
  • Max. Working Range
  • 2,010 mm
  • Repeatability
  • 0.03 mm
  • Weight
  • 260 kg
  • Power Supply
  • 2 kVA
  • S Axis
  • 210 °/sec
  • L Axis
  • 210 °/sec
  • U Axis
  • 220 °/sec
  • R Axis
  • 435 °/sec
  • B Axis
  • 435 °/sec
  • T Axis
  • 700 °/sec
  • Mounting Options
  • Floor, Wall, Ceiling
