AR Series

AR1730

6-Axis Arc Welding Robot for Advanced Welding Equipment

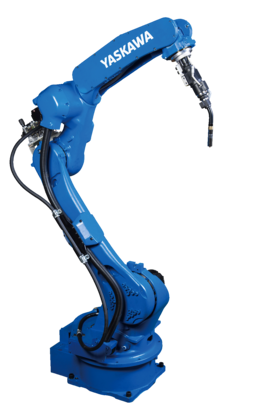

Duży 6-osiowy robot MOTOMAN AR1730 | © Yaskawa Polska

Overview

The six-axis MOTOMAN AR1730 robot is our specialist to manipulate even heavy arc welding or cutting equipment. It combines precision, world-leading path performance and functionality in a way which made MOTOMAN welding robots superior over the last decades. The AR1730 allows you to achieve optimal welding results even under extremely difficult conditions.

The bended arm design and hollow arm structure allows integrated torch cabling and helps avoiding collisions.

Technical Details

  • Number of Axes
  • 6
  • Payload
  • 25 kg
  • Max. Working Range
  • 1730 mm
  • Repeatability
  • 0.02 mm
  • Power Supply
  • 2 kVA
  • Maximum Speed S Axis
  • 210 °/s
  • Maximum Speed L Axis
  • 210 °/s
  • Maximum Speed U Axis
  • 265 °/s
  • Maximum Speed R Axis
  • 420 °/s
  • Maximum Speed B Axis
  • 420 °/s
  • Maximum Speed T Axis
  • 885 °/s
  • Mounting Options
  • Ceiling, Wall, Floor
  • Further Specifications
  • x No
