AR Series

AR1440

The six-axis MOTOMAN AR robots provide accurate performance especially for the high demands of arc welding applications

Overview

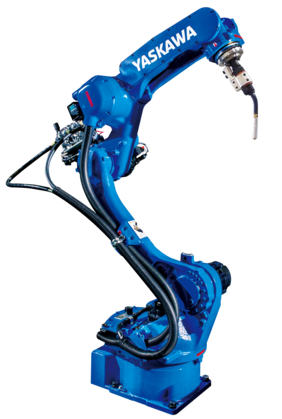

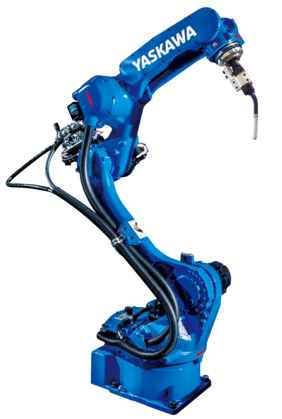

The six-axis MOTOMAN AR1440 robot provides high performance to achieve optimal results in extremely difficult conditions.

With a high payload of up to 12 kg and a wide working range of 1,440 mm this robot supports welding of bulky workpieces and mounting a broad variety of heavy welding and cutting equipment.



Technical Details

  • Number of Axes
  • 6
  • Payload
  • 12 kg
  • Max. Working Range
  • 1,440 mm
  • Repeatability
  • 0.06 mm
  • Weight
  • 150 kg
  • Power Supply
  • 1.5 kVA
  • S Axis
  • 260 °/sec
  • L Axis
  • 230 °/sec
  • U Axis
  • 260 °/sec
  • R Axis
  • 470 °/sec
  • B Axis
  • 470 °/sec
  • T Axis
  • 700 °/sec
  • Mounting Options
  • Ceiling, Wall, Floor
