MPX / MPO Series

MPX3500

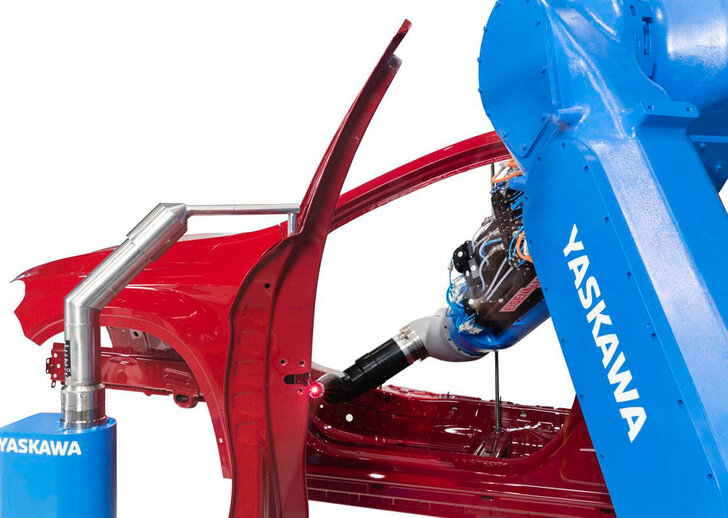

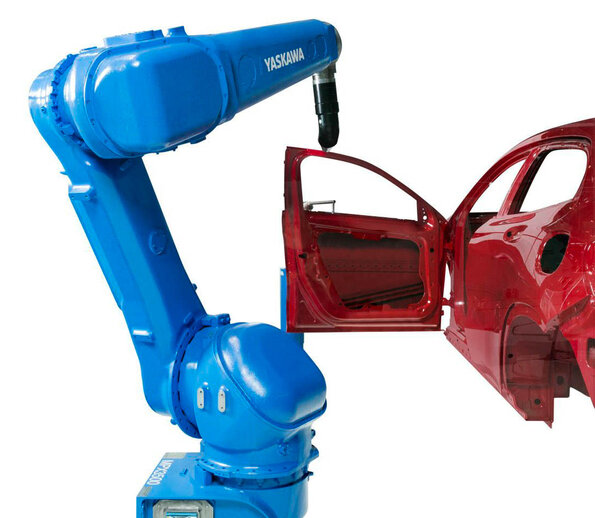

High performance robots for painting large work pieces like automobile bodies, bumpers, construction or equipment

Overview

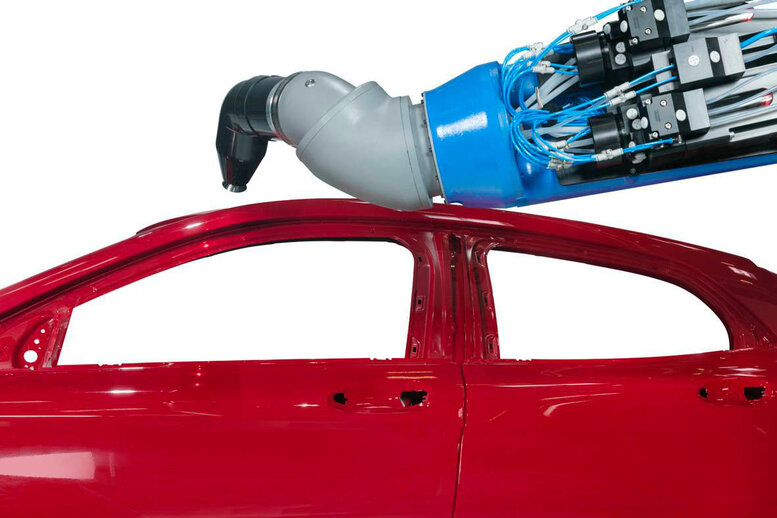

The MOTOMAN MPX3500 has a payload of 15 kg and a reach of up to 2,700 mm. The process arm and high payload of this robot allows the mounting of large bell applicators, which enable multi-color painting.



Technical Details

  • Number of Axes
  • 6
  • Payload
  • 15 kg
  • Max. Working Range
  • 2,700 mm
  • Repeatability
  • 0.15 mm
  • Weight
  • 560 kg
  • Power Supply
  • 3 kVA
  • Mounting Options
  • Ceiling, Wall, Floor
Processing... Enter name, description, product or keywords Showing _START_ – _END_ / _TOTAL_ records filtered from _MAX_ records No records No records First Last Sort ascending Sort descending

Downloads

Name
Flyer Robot MPX3500
Fast and flexible painting robot Data sheet | English
Data sheet English
Flyer Robot MPX3500
Schneller und flexibler Lackierroboter Data sheet | German
Data sheet German
MPX3500_2D CAD/CAE | CAD/CAE
MPX3500_3D CAD/CAE | CAD/CAE
MPX3500_L-type_A0x-E0x_2D CAD/CAE | CAD/CAE
MPX3500_L-type_F0x_2D CAD/CAE | CAD/CAE
MPX3500_R-type_A1x-E1x_2D CAD/CAE | CAD/CAE
MPX3500_R-type_F1x_2D CAD/CAE | CAD/CAE
