MPL Series

MPL100II

Innovative palletising robots are true masters of movement and are attractive due to their superior acceleration and exceptional axis speeds

Overview

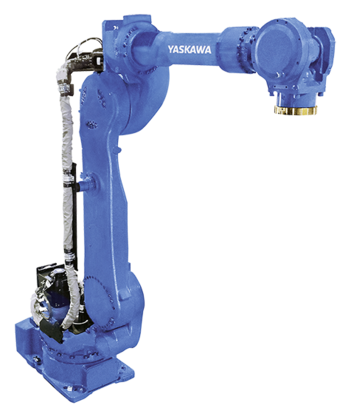

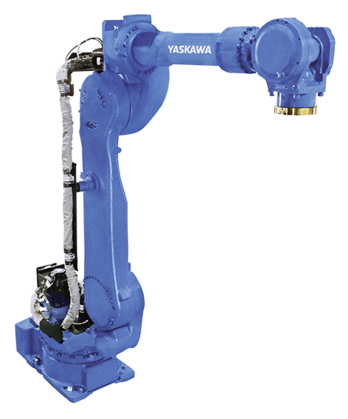

The 5-axis MOTOMAN MPL100II has a payload of 115 kg, a horizontal reach of 2,150 mm and a vertical reach of 3,149 mm.



Technical Details

  • Number of Axes
  • 5
  • Payload
  • 115 kg
  • Max. Working Range
  • 2,150 mm
  • Repeatability
  • 0.2 mm
  • Weight
  • 950 kg
  • Power Supply
  • 8 kVA
  • S Axis
  • 125 °/sec
  • L Axis
  • 88 °/sec
  • U Axis
  • 125 °/sec
  • B Axis
  • 175 °/sec
  • T Axis
  • 265 °/sec
  • Mounting Options
  • Floor
Processing... Enter name, description, product or keywords Showing _START_ – _END_ / _TOTAL_ records filtered from _MAX_ records No records No records First Last Sort ascending Sort descending

Downloads

Name
Flyer Robot MPL100II
Flyer, datasheet, brochure, robot MPL100 Data sheet | English
Data sheet English
Flyer Robot MPL100II
Flyer, Datenblatt, Prospekt Roboter MPL100 Data sheet | German
Data sheet German
2D_MPL100II CAD/CAE | CAD/CAE
MPL100II_3D CAD/CAE | CAD/CAE
