GP Series

GP88

6-axis, compact and high speed handling robots

Overview

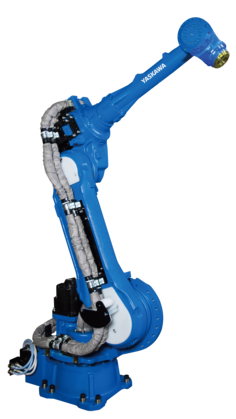

The flexible MOTOMAN GP88 handling robot provides a payload of 88 kg and a maximum reach of 2,236 mm.



Technical Details

  • Number of Axes
  • 6
  • Payload
  • 88 kg
  • Max. Working Range
  • 2,236 mm
  • Repeatability
  • 0.07 mm
  • Weight
  • 630 kg
  • Power Supply
  • 4 kVA
  • S Axis
  • 170 °/sec
  • L Axis
  • 140 °/sec
  • U Axis
  • 160 °/sec
  • R Axis
  • 230 °/sec
  • B Axis
  • 230 °/sec
  • T Axis
  • 350 °/sec
  • Mounting Options
  • Ceiling, Wall, Floor
