GP Series

GP250

Multi-Purpose Handling Robot with 250 kg Payload

Overview

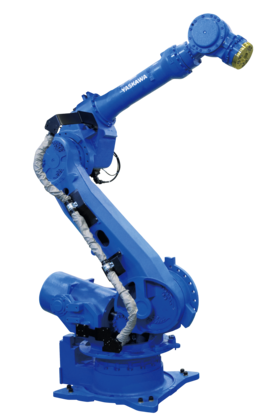

The MOTOMAN GP250 handling robot provides a payload of 250 kg and a maximum reach of 2,710 mm, combined with an excellent repeatability precision of +/- 0,05 mm.

This six-axis GP250 robot provides fast and accurate performance to boost productivity for heavy payload handling applications. Featuring a wide work envelope, this robot uses a streamlined upper arm for easy access to parts in confined spaces. While the wide wrist motion range reduces interference with fixtures, the reduced interference design enables close proximity placement of robots. The latest generation high-performance Sigma7 servo drive technology is leading to fast axis speeds and powerful acceleration. A high moment and inertia wrist enables the GP250 robot to efficiently handle larger and heavier payloads for superior performance.

The GP250 is perfect for a big variety of applications, such as Material Handling, (Remote) Laser Welding, Spot Welding, Press Tending and (due to its excellent mechanical stiffness) also for Material Cutting/Trimming.



Technical Details

  • Number of Axes
  • 6
  • Payload
  • 250 kg
  • Max. Working Range
  • 2710 mm
  • Repeatability
  • 0.05 mm
  • Weight
  • 1345 kg
  • Power Supply
  • 5 kVA
  • Maximum Speed S Axis
  • 100 °/s
  • Maximum Speed L Axis
  • 90 °/s
  • Maximum Speed U Axis
  • 97 °/s
  • Maximum Speed R Axis
  • 120 °/s
  • Maximum Speed B Axis
  • 120 °/s
  • Maximum Speed T Axis
  • 190 °/s
  • Mounting Options
  • Floor
  • Further Specifications
  • x No
