GP Series

GP25 FGG

6-axis, compact and high speed handling robots

Overview

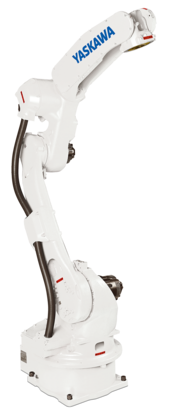

The MOTOMAN GP25 FGG is a compact and flexible handling robot which provides a payload of 25 kg.

Food grade grease allows this robot to be used in food-related applications in secondary and tertiary packaging.

Its drip-proof design assures smooth disposal of a liquid on the robot surface.

Technical Details

  • Number of Axes
  • 6
  • Payload
  • 25 kg
  • Max. Working Range
  • 1,730 mm
  • Repeatability
  • 0.06 mm
  • Weight
  • 265 kg
  • Power Supply
  • 2 kVA
  • S Axis
  • 210 °/sec
  • L Axis
  • 210 °/sec
  • U Axis
  • 265 °/sec
  • R Axis
  • 420 °/sec
  • B Axis
  • 420 °/sec
  • T Axis
  • 885 °/sec
  • Mounting Options
  • Ceiling, Wall, Floor
