GP Series

GP20

Fast & precise handling robot with 20 kg payload

Overview

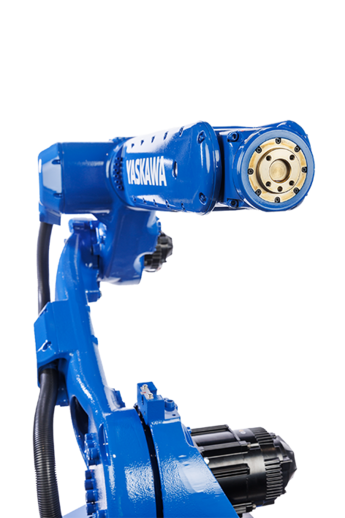

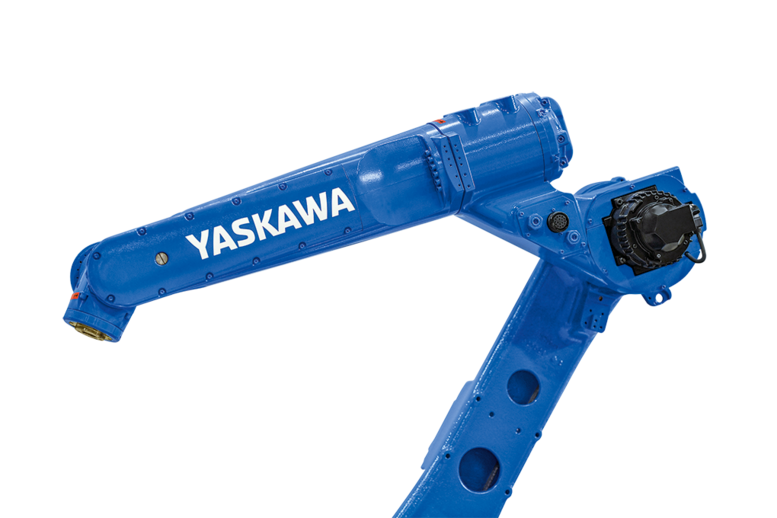

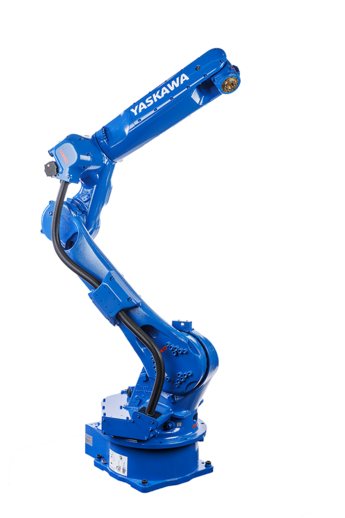

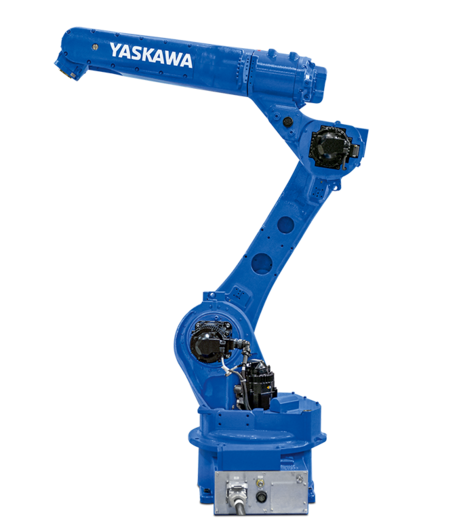

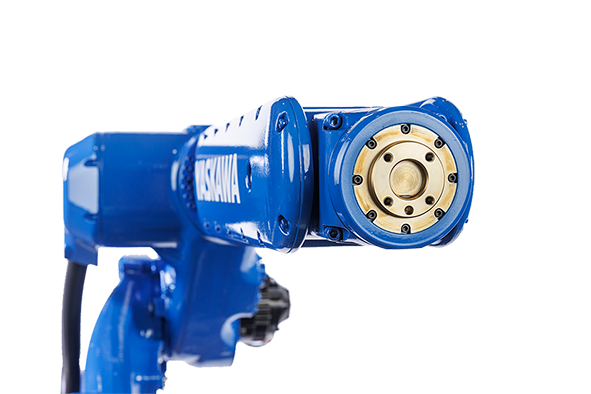

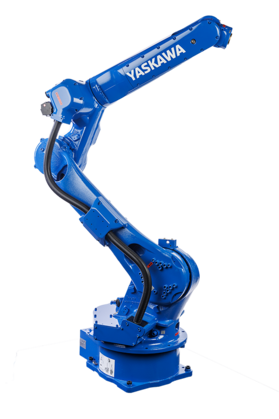

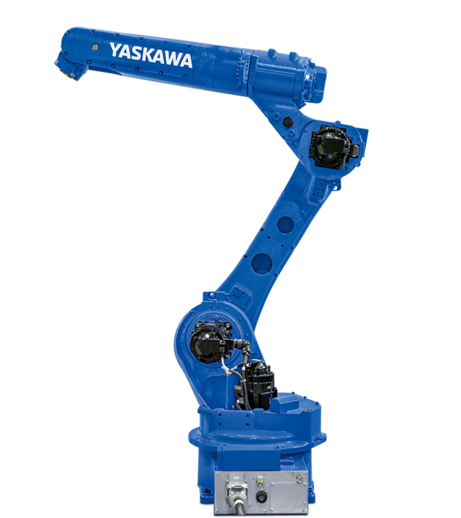

The MOTOMAN GP20 is a fast and precise 6-axis industrial robot with a payload of up to 20 kg.

With a reach of 1,802 mm and a high repeatability of ± 0.02 mm, it can be used for a variety of applications, such as machine tending, material handling, packaging and assembly of small to medium-sized workpieces.

Its robust, modern and slim industrial design enables high moment of inertia und very low wrist vibration.

With numerous functions of the MOTOMAN YRC1000 controller, the MOTOMAN GP20 has a wide range of possible applications.



Technical Details

  • Number of Axes
  • 6
  • Payload
  • 20 kg
  • Max. Working Range
  • 1802 mm
  • Repeatability
  • 0.02 mm
  • Weight
  • 250 kg
  • Power Supply
  • 2 kVA
  • Maximum Speed S Axis
  • 210 °/s
  • Maximum Speed L Axis
  • 210 °/s
  • Maximum Speed U Axis
  • 265 °/s
  • Maximum Speed R Axis
  • 420 °/s
  • Maximum Speed B Axis
  • 420 °/s
  • Maximum Speed T Axis
  • 720 °/s
  • Mounting Options
  • Ceiling, Wall, Floor
  • Further Specifications
  • x No
