ANTAIOS

Unlimited Networking

Overview

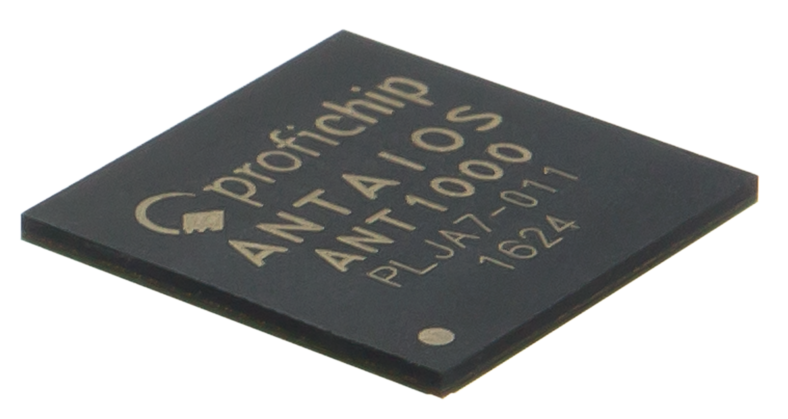

The new profichip ANTAIOS multi-fieldbus controller enables higher integration in a smaller package to fulfill the requirements of the industrial automation market.

The latest development by Yaskawa combines a powerful ARM Cortex-A5 processor for advanced user applications with an effective and very flexible communication technology for today´s industrial applications demanding sophisticated real-time capabilities.
It is designed for remote-IOs, gateways, sensors, actors and communication master modules.

Additionally, a unique feature of this SoC is the high-speed backplane-communication-master for profichip SliceBus Technology. It provides fast and reliable communication for up to 64 of profichip SNAP+ slave controllers.

PROFIBUS and CAN support is guaranteed by special hardware modules and can be active in parallel to the sophisticated, programmable Realtime Ethernet Switching Unit. A third (Gigabit-)Ethernet port rounds up the rich set of communication capabilities making the ANTAIOS an ideal choice for any kind of communication challenge.

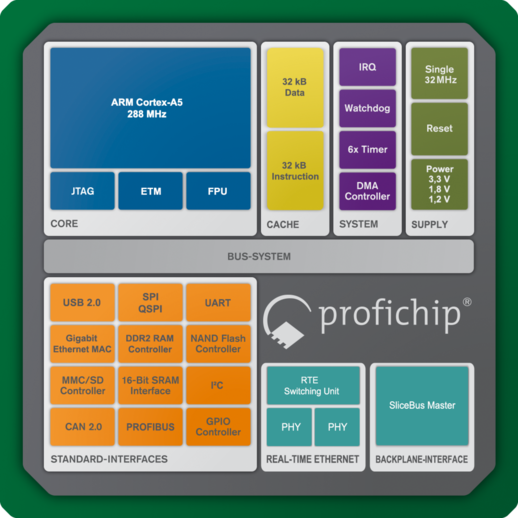

  • Multiple fieldbus support
  • 288 MHz ARM Cortex-A5 Processor
  • Ethernet interface with real-time switch
  • Gigabit Ethernet MAC
  • SliceBus-Master

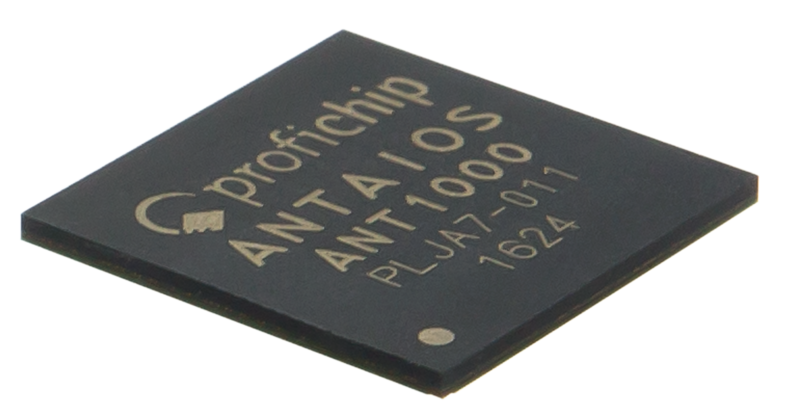

Two package variants:

  • TFBGA-380 / 15x15 mm / 0.65 mm pitch
  • TFBGA-385 / 19x19 mm / 0.8 mm pitch
