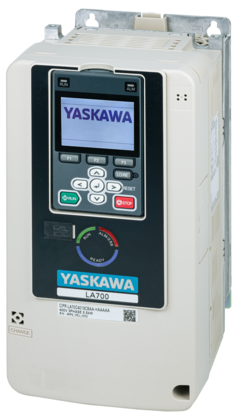

CIPR-LA70C4012CBA-9600

• Input power supply
• 400 V

• Rated output current (HD)
• 8.1 A

• 50% ED Rated Output Current
• x No

• Overload Tolerance (ND)
• x No

• Overload Tolerance (HD)
• x No

• Max. applicable motor power (HD)
• 4 kW

• Input power phases
• 3-phase

• EMC filter (embedded)
• ✓ Yes

• Motor type
• Induction motor, Permanent magnet motor

• Encoder
• ✓ Yes

• Standards compliance
• CE, UKCA

• Ambient Temperature (Min)
• -10 °C

• Ambient Temperature (Max)
• 50 °C

• Max. Humidity (non-condensing)
• 95 %

• Max. Altitude (without Derating)
• 1000 m

• Max. Altitude (with Derating)
• 4000 m

• Height
• 260 mm

• Width
• 140 mm

• Depth
• 211 mm

• Weight
• 3.9 kg

• Cooling method
• x No

• Enclosure
• IP20

• Environmental Specifications
• Standard

• Analog Input
• 3

• Analog Output
• 2

• Digital Input
• 10

• Digital Output
• 6

• Safety Level
• x No

• Performance Level
• x No

• Torque Control
• x No

• Braking transistor
• Built-in

• Motor Thermal Protection
• x No

• Max Output Frequency
• 200 Hz
