GP Series
GP215L
General Purpose 6-Axis Handling Robots
Overview

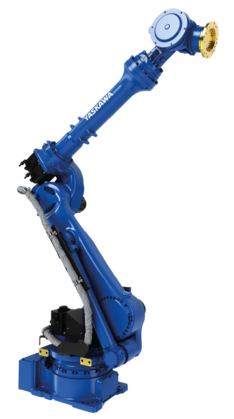

The 6-axis MOTOMAN GP215L robot is a powerful and versatile industrial robot. It is characterised by a high payload of 215 kg and an impressive working range of 3114 mm.
The robot is an all-rounder and is ideally suited to a wide range of applications, such as the handling of heavy and large-format components, machine loading, assembly and palletizing tasks.
Thanks to its compact, floor-mounted design, the GP215L can be used in confined spaces.
As component size and weight continue to increase across automotive, battery, and industrial manufacturing, the GP215L provides the flexibility, safety, and efficiency needed to automate critical handling operations.
TYPICAL APPLICATIONS
- Material Handling
- Assembly
- Machine Tending
- Intralogistics & End-of-Line Handling
- Palletizing
KEY BENEFITS
- Fast, flexible and powerful
- Maximum performance using minimal floor space
- Reliable IP67 protection for the wrist axis (RBT); IP54 protection for the main axis (SLU)
Technical Details
- Number of Axes
- 6
- Payload
- 215 kg
- Max. Working Range
- 3114 mm
- Repeatability
- 0.1 mm
- Weight
- 1300 kg
- Power Supply
- 5 kVA
- Maximum Speed S Axis
- 105 °/s
- Maximum Speed L Axis
- 88 °/s
- Maximum Speed U Axis
- 88 °/s
- Maximum Speed R Axis
- 120 °/s
- Maximum Speed B Axis
- 120 °/s
- Maximum Speed T Axis
- 200 °/s
- Mounting Options
- Floor
- Further Specifications
- x No
