GP Series

GP7

Small & agile 6-Axis-Robot with 7 kg Payload

Overview

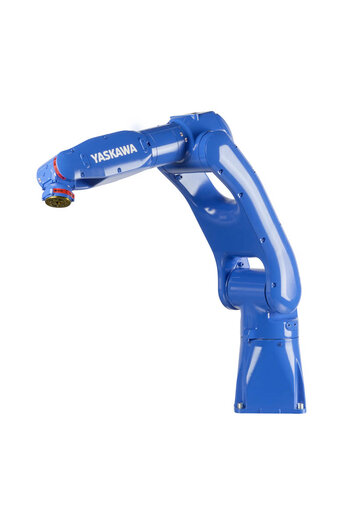

The MOTOMAN GP7, one of our most successful robot models ever, is an extremely agile, compact and universal robot with 7 kg payload, 927 mm reach and superior repeatability of +/- 0.01 mm. Our customers appreciate the performance of the GP7 for use in all kinds of applications, e.g. handling, assembly, pick&place (often in combination with 3D machine vision) and quality inspection.

High IP67 rating (dust and liquid protection) is standard, allowing the robot to work in harsh environments. The optional anti-corrosive coating (ACC) of the GP7 protects the robot in corrosive atmosphere such as acids, alkali and vapors. A GP7 food grade grease version and CR5 cleanroom class version is also available.



Technical Details

  • Number of Axes
  • 6
  • Payload
  • 7 kg
  • Max. Working Range
  • 927 mm
  • Repeatability
  • 0.01 mm
  • Weight
  • 37 kg
  • Power Supply
  • 1 kVA
  • Maximum Speed S Axis
  • 375 °/s
  • Maximum Speed L Axis
  • 315 °/s
  • Maximum Speed U Axis
  • 410 °/s
  • Maximum Speed R Axis
  • 550 °/s
  • Maximum Speed B Axis
  • 550 °/s
  • Maximum Speed T Axis
  • 1000 °/s
  • Mounting Options
  • Ceiling, Wall, Floor
  • Further Specifications
  • x No
