NOTOS

I/O backplane slave controller

From 6.38 €

Overview

The SliceBus 2.0 technology was created to deliver many additional functionalities, in a price sensitive small frame.

Main Features:

  • Clock-synchronous operation in the nanosecond range possible
  • Integrated LVDS termination resistor
  • Asynchronous, serial data transmission with 192 Mbit/s over Point to Point LVDS physic
  • Many included features for I/O modules available (see below in specific segments)

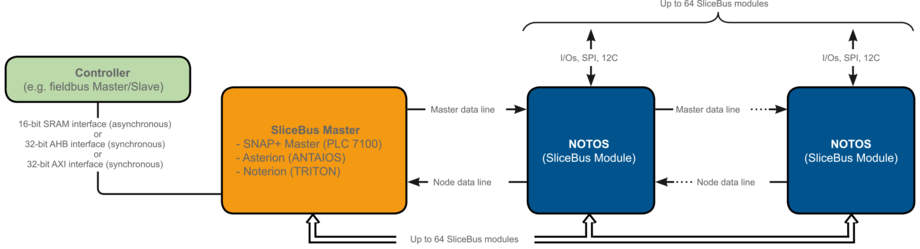

Basic SliceBus Information:

  • Up to 64 slave (node) stations
  • Additional alarm line for initialization and asynchronous event communi-cations from node to Master
  • Full system detection from SliceBus Master without external information on module configuration

Error Detection Mechanism:

  • CRC code with Hamming distance 4 for every telegram (all 3-bit errors are detected)
  • Watchdog function inside every node for SliceBus Master observation
  • “Auto shutdown” in case of SliceBus Master malfunction
  • Retry statistic for early detection of possible transmission issues

Time Synchronisation:

  • Synchronized nanosecond clock for each node:
  • Option for clock synchronization from SliceBus Master to SliceBus Master via different protocols (PROFIBUS® DP-V2, PROFINET®, EtherCAT®, etc.)

Technological Functions:

  • Standard I/O function: 8 digital I/O or up to 32 I/O with shift register
  • Integrated digital input filter function
  • Asynchronous event signaling with nanosecond time stamping for advanced nodes
  • Two advanced counters with AB oversampling, latch, reset, output, hysteresis, compare value, repetitive/endless

Counting and Additional Time Stamp Information:

  • SSI function with time stamp information (speed calculations: counter difference/time)
  • Pulse width modulation with 20 ns resolution
  • Frequency measurement mode
  • Maximum counting frequency of 24 MHz
  • Special digital I/O time stamp nodes (ETS: Edge Time Stamp System) for input edge and output control with nanosecond time (independent from fieldbus cycle!)

SPI Interface in NOTOS for Analog I/O / Safety / Serial CP with External MCU

  • 80 Mbit/s SPI interface for external microcontroller
  • Up to 128 byte In / 128 byte Out data for external microcontroller
  • Alarm function and watchdog function
  • 3 additional synchronization interrupt outputs
  • Channel for extended data exchange
  • Extended diagnostic dataset for SPI Master

Mechanical and Electrical Specifications:

  • I/O voltage: 3.3 V, typ. 10 mA; Core voltage: 1.2 V, typ. 22 mA
  • LQFP 48 package, 9.0 mm², 0.5 mm pitch
