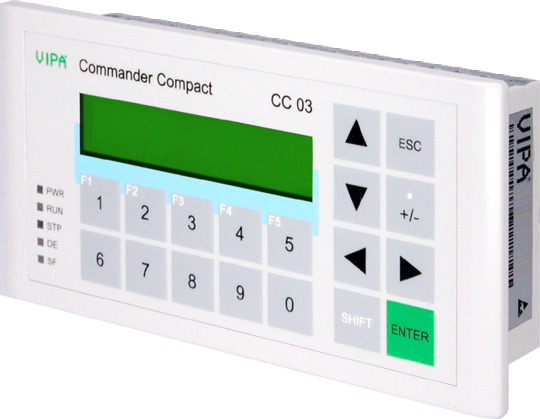

VIPA Commander Compact CC 03

Operating & Monitoring

Overview

In the VIPA Commander Compact CC 03 a PLC CPU, programmable with Siemens STEP7, is integrated. Besides the 128 kByte user memory, the CPU has 16/24/32 kByte program and 24/32/40 kByte load memory (depending on the version). In addition, 16 digital inputs and outputs each are integrated. The CC 03 is expandable with up to four 100V or 200V modules (160 digital inputs/outputs, or up to 32 analog inputs/outputs respectively are supported).



  • Display: 2 x 20 characters
  • Interface: MP²I
  • User memory: 128 KB
  • Languages: DE, EN, FR, ES, IT, SV, NO, DA
  • Project engineering via VIPA OP-Manager or Siemens ProTool
  • Integrated PLC-CPU: 32/40 KB work/load memory
  • 16x DI, 16x DO
  • Up to 4 I/O expansion modules

Technical Details

  • Line Display Size
  • 2 x 20
  • CPU Name
  • PLC CPU
  • User Memory
  • 128 kB
