SGMXJ

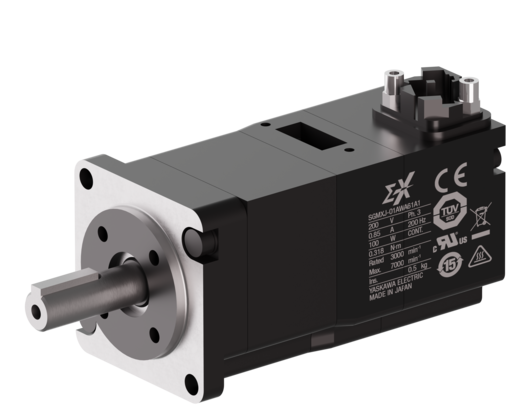

SGMXJ-01AUA2CA1
Quality. Precision. Dynamics.
Yaskawa Europe Motion Control Sigma-X Servo Series Sigma-X Rotary servomotors SGMXJ SGMXJ-01AUA2CA1
Overview
The SGMXJ was designed to maximize responsiveness in applications where precise load matching is critical. This family of medium-inertia rotary servo motors was created with low-capacity applications in mind, yet it can respond with rated speeds to 3000rpm (7000rpm max speed) and rated torque up to 8.36Nm when the application requires it. 26-bit absolute encoder resolution maintains industry-leading positional accuracy in any operating condition.
Technical Details
- Input power supply
- 200 V
- Rated output
- 0.1 kW
- Shaft end
- Straight without key
- Encoder resolution
- 26 bit
- Encoder type
- Absolute
- Options
- With holding brake (24 VDC)
- Height
- 54.5 mm
- Width
- 40 mm
- Depth
- 133 mm
- Weight
- 0.7 kg
- Allowable Load Moment of Inertia
- 35 Times
- Rated torque
- 0.318 Nm
- Instantaneous maximum torque
- 1.11 Nm
- Rated Motor Speed
- 3000 1/min
- Maximum motor speed
- 7000 1/min
- Motor Moment of Inertia
- 0.0749 x10⁻⁴ kg·m²
- Flange Dimension (LC)
- 40 mm
- Flange Diameter (LA)
- 46 mm
- Shaft End Diameter (S)
- 8 mm
- Shaft End Length (Q)
- 25 mm
