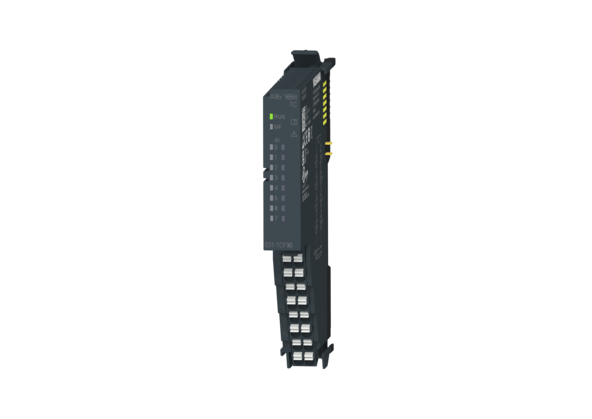

SM 031 - Analog Input - 031-1CF90

• Current consumption from backplane bus
• 80 mA

• Power Loss
• 0.4 W

• Number of inputs (digital)
• x No

• Rated load voltage (digital)
• x No

• Signal logic input (digital)
• x No

• Input characteristic curve (digital)
• x No

• Number of outputs (digital)
• x No

• Rated load voltage (digital output)
• x No

• Signal logic output (digital)
• x No

• Number of inputs (analog)
• 8

• Rated load voltage (analog)
• x No

• Voltage inputs (analog)
• x No

• Current inputs (analog)
• x No

• Resolution
• 16 bit

• Measurement principle
• Sigma-Delta

• Number of outputs (analog)
• x No

• Output voltage ranges
• x No

• Output current ranges
• x No

• Number of counters
• x No

• Number of channels
• x No

• Power stage
• x No

• Type of encoder
• x No

• Control type
• x No

• Number of clamps
• x No

• Binding of potential
• x No

• Point-to-point protocol
• x No

• Encoder Supply: Number of outputs (L+n)
• x No

• Port mode
• x No

• Memory card slot
• x No

• Racks, max.
• x No

• Modules per rack, max.
• x No

• Fieldbus
• x No

• Connector
• x No

• Topology
• x No

• Material
• PPE / PPE GF10

• Mounting
• Profile rail 35 mm

• Width
• 12.9 mm

• Height
• 109 mm

• Depth
• 76.5 mm

• Net weight
• 53 g

• Gross weight
• 73 g

• Certifications
• UL certification, KC certification, UKCA certification, ChinaRoHS certification

• Safety protocol
• x No

• Safety requirements
• x No

• Circuit monitoring
• x No

• Max. operating temperature
• 60 °C
