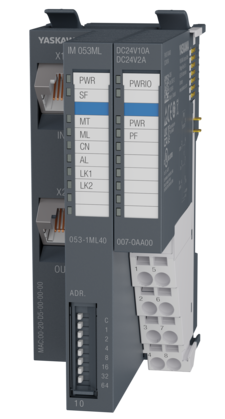

IM 053 - MECHATROLINK-4 - 053-1ML40

• Input power supply
• 24 V

• Current Consumption
• 0.83 A

• Max. current drain at backplane bus
• 3 A

• Max. current drain load supply
• 10 A

• Power Loss
• 4.9 W

• Number of inputs (digital)
• x No

• Rated load voltage (digital)
• x No

• Signal logic input (digital)
• x No

• Input characteristic curve (digital)
• x No

• Number of outputs (digital)
• x No

• Rated load voltage (digital output)
• x No

• Current consumption from load voltage L+ (without load)
• x No

• Signal logic output (digital)
• x No

• Number of inputs (analog)
• x No

• Rated load voltage (analog)
• x No

• Voltage inputs (analog)
• x No

• Current inputs (analog)
• x No

• Measurement principle
• x No

• Number of outputs (analog)
• x No

• Output voltage ranges
• x No

• Output current ranges
• x No

• Number of counters
• x No

• Number of channels
• x No

• Power stage
• x No

• Type of encoder
• x No

• Control type
• x No

• Number of clamps
• x No

• Binding of potential
• x No

• Point-to-point protocol
• x No

• Encoder Supply: Number of outputs (L+n)
• x No

• Port mode
• x No

• Memory card slot
• x No

• Racks, max.
• 1

• Modules per rack, max.
• x No

• Fieldbus
• x No

• Connector
• 2 x RJ45

• Topology
• Line

• Transmission speed, max.
• 100 Mbit/s

• Address range inputs, max.
• 1024 Byte

• Address range outputs, max.
• 1024 Byte

• Material
• PPE / PPE GF10

• Mounting
• Profile rail 35 mm

• Width
• 48.5 mm

• Height
• 109 mm

• Depth
• 76.5 mm

• Net weight
• 165 g

• Gross weight
• 181 g

• Certifications
• UL certification, KC certification, UKCA certification, ChinaRoHS certification

• Safety protocol
• x No

• Safety requirements
• x No

• Circuit monitoring
• x No

• Max. operating temperature
• 60 °C
