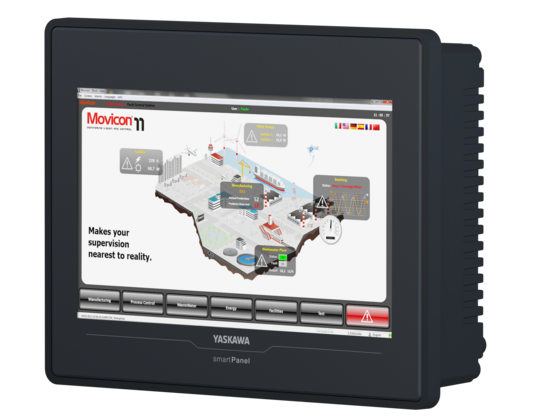

smartPanel TP307-SM
Ordercode: H71-71A41-0
- Display: 7"
- Processor: Cortex-A8 | 1GHz
- Work memory [MB]: 512
- User memory [GB]: 4
- Interface onboard: 1x RS232/422/485 | 1x USB-A | 1x RJ45 (Ethernet)
- Software: Windows Embedded Compact 7
- Visualization system: Movicon 11.6 Runtime - 4096 I/Os
Technical Details
- Display Size
- 7 "
- Line Display Size
- x No
- CPU Name
- Cortex-A8
- CPU Speed
- 1 GHz
- RAM
- 512 MB
- User Memory
- 4 GB
- External Slot
- x No
- Onboard Interface
- RS-232/422/485, USB-A, RJ45
- Operating System
- Windows Embedded Compact 7
