A class of its own

• Innovative matrix technology
• Embedded low harmonics and regenerative performance
• Energy saving 4Q operation
• Unique electronic bypass at grid frequency
• Functional safety built-in
• Cost saving
• Clean power
• Time saving installation

VFDs reduce energy use

A typical fan or pump running at 50% speed will use one-fifth as much energy compared to systems using mechanical control methods. For square load applications, operators can typically achieve 20 - 70% energy savings when applying VFDs to fan and pump systems while creating a more comfortable environment.

• Booster pumps
• Chiller compressors
• Chilled water pumps
• Condenser water pumps
• Condensing fans
• Cooling tower fans
• Fan arrays
• Supply and return fans

Clean grids

U1000 is the answer to power quality, energy savings, and system efficiency improvement. The advanced technology of the Yaskawa matrix drive combines all application key features in a single space-saving drive design reducing THDi to 5 % without the need for external transformers or heavy filtering.

• No oversizing of transformers, generators or cables
• Sinusoidal input current and power factor at ~ 0.98
• Compact installation - 3 wire in, 3 wire in
• Reduced lifecycle cost
• Reliable operation
• 10 years of maintenance-free design

Innovative matrix technology

Active Front End design without conventional DC bus capacitor inside.

Clean
power

Harmonic pollution (THD-i)  below 5%.

Energy saving
4Q operation

100% braking power savings.

System efficiency

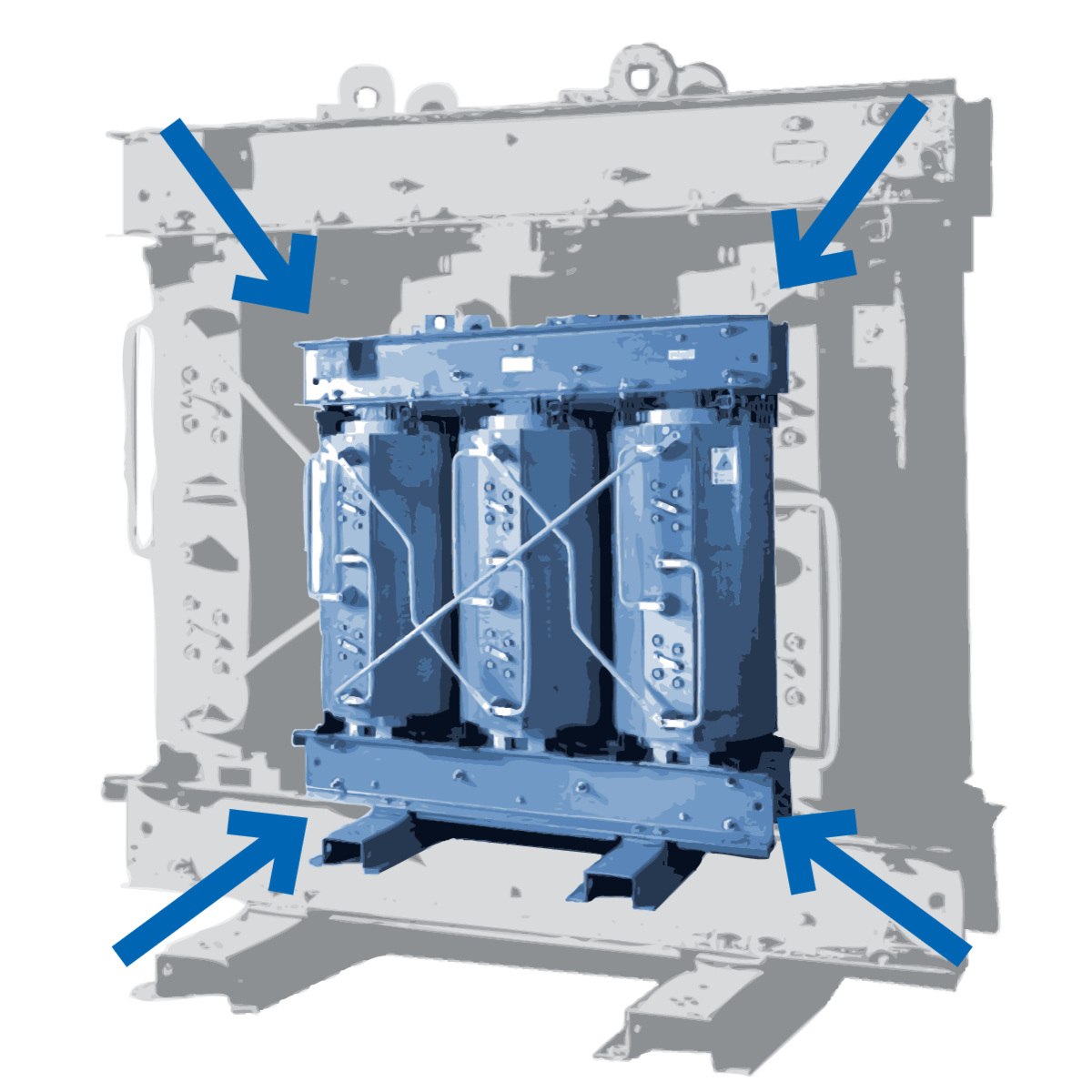

The AC to AC design of the matrix drive creates a sinusoidal input current. It means the U1000 provides a power factor close to 1. This near unity power factor makes it possible to reduce losses in generators, transformers, and cables. When installing the U1000 you can even design a smaller grid capacity for new installations or add more drives to existing power lines without additional stress to the power transformers.

Modernization

The Yaskawa matrix technology has been successfully proven in the field of low harmonic, space saving and regenerative applications. The direct AC to AC design advantage makes the setup more efficient and helps to save your operation cost sharing the regenerative energy with other electrical devices in the system.

• Low harmonic (keep IEEE 519 limits)
• No need for braking units and braking resistors or
• additional fusing
• Significant reduction in panel cooling requirements
• Easy conversion from an existing to a new system
• 100 % wasted energy saved
• Designed for 10 years of maintenance-free use

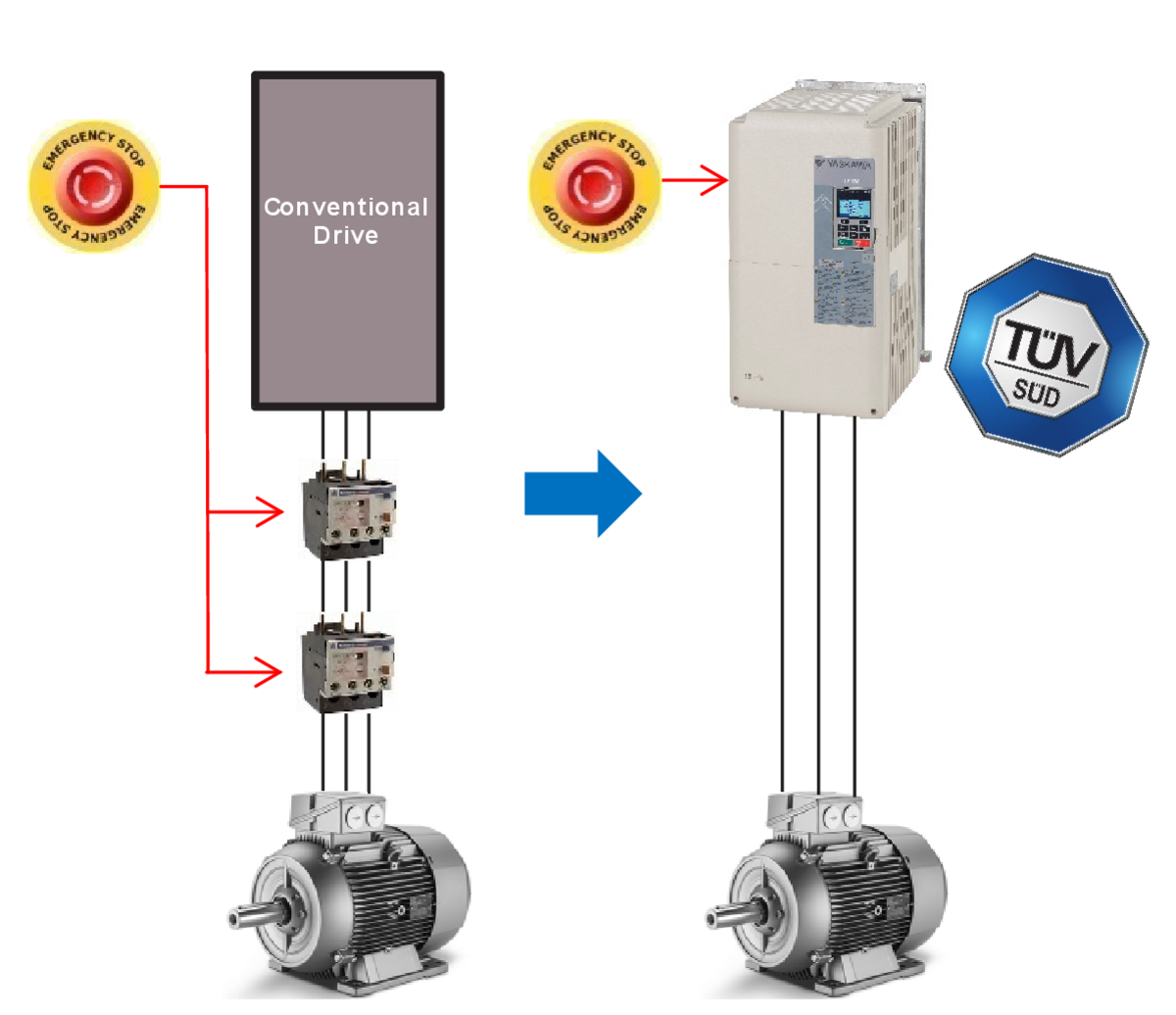

Built-in functional safety

U1000 comes with a built-in dual-channel safe torque off (STO) function that meets the requirements of SIL3 and PL-e, offering an easy way to improve machine safety without the need for complex external wiring.

• TÜV certified according to EN/ISO 13849-1 (PL-e), IEC 62061 (SIL3)
• Simple wiring
• Less components
• Higher reliability
• Space saving
