smartPanels
smartPanels
Operating & Monitoring
Overview

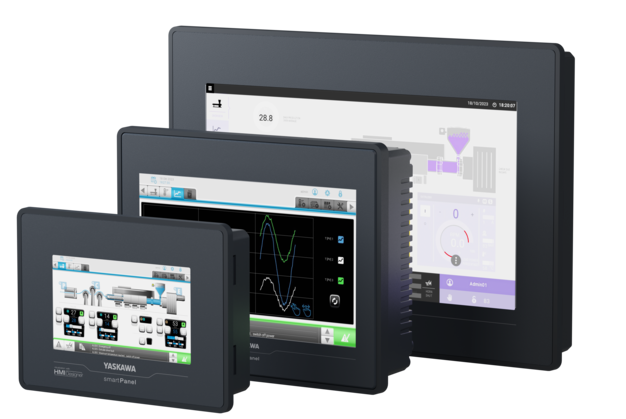

The smartPanels are optimally designed for entry-level and medium-sized applications. They stand for high user-friendliness and connectivity. Equipped with a 1 GHz ARM Cortex-A8 processor and HMI Designer or Movicon 11 standard, the user is unlimited in terms of tags, screens, recipes, alarms, etc..
Characteristics
- Display size: 4,3”, 7”, 10”
- 65k colors
- Processor: ARM Cortex-A8 1 GHz
- Interfaces: USB-A, Ethernet, RS232/422/485
- Memory: 512MB RAM, 4GB Flash
Visualization system Movicon
- Vector graphics
- Comprehensive symbols library
- VBA support (Movicon) or Java Script (HMI Designer)
- Extensive I/O driver library (import of variables from the PLC possible)
- Powerful alarm and recipe management
- Data acquisition and handling
- Trend curves and archiving of process data as historical data
- Extensive driver library
- Multilingual support
- User management
- Remote management for remote maintenance
- Remote access via standard VNC client
- Integrated Ethernet TCP/IP networking
- 3rd Party PLC support
Download the brochure now
Technical Details
- Display Size
- x No
- Line Display Size
- x No
- CPU Name
- Cortex-A8
- CPU Speed
- 1 GHz
- RAM
- 512 MB
- User Memory
- 4 GB
- External Slot
- x No
- Onboard Interface
- RS-232/422/485, USB-A, RJ45
- Operating System
- Windows Embedded Compact 7
